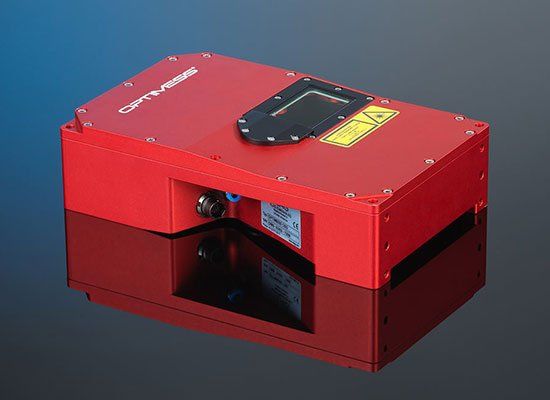

OPTIMESS SCAN

A scanner for every angle of view. The OPTIMESS SCAN are phase-based laser scanners with the highest precision at measurement rates of 1 million points per second and scan rates of up to 400 profiles per second. This ensures a high-resolution point grid even at high travel speeds. The compact, customised design enables continuous measurement operation in limited space and under the most adverse conditions – whether heat or snow – the robust OPTIMESS SCAN always delivers reliable results.



Characteristics

  • One million measuring points per second
  • Up to 400 profile scans per second
  • Wide measurement range up to 15 m
  • Insensitive to sunlight
  • Compact, light and robust: protection class IP 65
  • Withstands extreme conditions: temperature -10 to +50 °C

Technical Data

Type
OPTIMESS CP
OPTIMESS RD
OPTIMESS CS
OPTIMESS CSD
OPTIMESS WSH
Typical measurement object
Tunnel, open space
Adjacent rail
Contact wire
Contact wire and rail
Contact wire (Highspeed)
Field of view
360° *
79°
60°
2 x 60°
60°
Field of view Alignment
-85 ... +265° *
-60 b... +19° (diagonally downwards)
+60 ... +120° (above)
+60 ... +120° und -120 ... -60° (above and below)
+60 … +120° (above)
Max. Measuring rate
1MHz
Scan rate
20 ... 150 Hz
10 ... 100 Hz
10 … 100 Hz
10 … 100 Hz
60 … 400 Hz
Measurement range
0.5 ... 15m
0.5 ... 10m
0.5 … 10 m
0.5 … 10 m
0.5 … 5 m
Measurement uncertainty
0.4mm**
Linearity
±4 mm***
Angular resolution
0.005°
0.01°
Angular accuracy
±0.03°
±0.025°
Dimensions
265 x 250 x 123 mm
300 x 220 x 80 mm
165 x 265 x 66 mm
165 x 265 x 66 mm
242 x 330 x 122 mm
Weight
11.1 kg
7.2 kg
5kg
5 kg
12 kg

*The reference plate shades 10° at the bottom.

**1 sigma value at 5 m measuring distance, target white (80%), measuring rate 200 kHz.

***In the measurement range 0.5 … 5 m, above ±10 mm

Technical Data

Typical measurement object
CP
Tunnel, open space
RD
Adjacent rail
CS
Contact wire
CSD
Contact wire and rail
WSH
Contact wire (Highspeed)
Field of view
CP
360° *
RD
79°
CS
60°
CSD
2 x 60°
WSH
60°
Field of view Alignment
CP
-85 ... +265° *
RD
-60 b... +19° (diagonally downwards)
CS
+60 ... +120° (above)
CSD
+60 ... +120° und -120 ... -60° (above and below)
WSH
+60 … +120° (above)
Max. Measuring rate
CP
1MHz
RD
1 MHz
CS
1 MHz
CSD
1 MHz
WSH
1 MHz
Scan rate
CP
20 ... 150 Hz
RD
10 ... 100 Hz
CS
10 … 100 Hz
CSD
10 … 100 Hz
WSH
60 … 400 Hz
Measurement range
CP
0.5 ... 15m
RD
0.5 ... 10m
CS
0.5 … 10 m
CSD
0.5 … 10 m
WSH
0.5 … 5 m
Measurement uncertainty
CP
0.4mm**
RD
0.4 mm **
CS
0.4 mm **
CSD
0.4 mm **
WSH
0.4 mm **
Linearity
CP
±4 mm***
RD
±4 mm ***
CS
±4 mm ***
CSD
±4 mm ***
WSH
±4 mm ***
Angular resolution
CP
0.005°
RD
0.005°
CS
0.005°
CSD
0.005°
WSH
0.01°
Angular accuracy
CP
±0.03°
RD
±0.03°
CS
±0.03°
CSD
±0.03°
WSH
±0.025°
Dimensions
CP
265 x 250 x 123 mm
RD
300 x 220 x 80 mm
CS
165 x 265 x 66 mm
CSD
165 x 265 x 66 mm
WSH
242 x 330 x 122 mm
Weight
CP
11.1 kg
RD
7.2 kg
CS
5 kg
CSD
5 kg
WSH
12 kg

*The reference plate shades 10° at the bottom.

**1 sigma value at 5 m measuring distance, target white (80%), measuring rate 200 kHz.

***In the measurement range 0.5 … 5 m, above ±10 mm

OPTIMESS CP

The scanner for a precise all-round view – whether tunnel, contact wire with rail or free space – the OPTIMESS CP covers every situation.

OPTIMESS CSD

Knowing where up and down is – the OPTIMESS CSD monitors contact wire and rail in one.

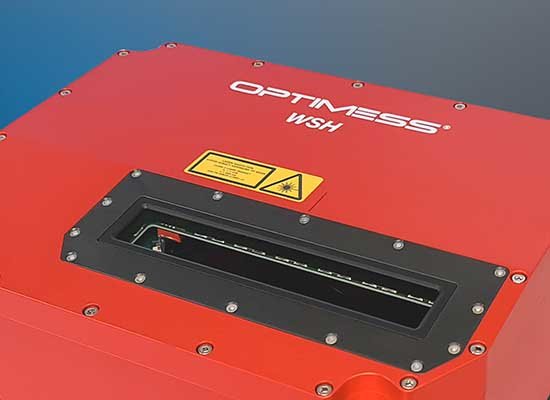

OPTIMESS WSH

When things have to be done fast – the OPTIMESS WSH seamlessly monitors the contact wire – even at high speed.

OPTIMESS RD

Distance monitoring from a safe distance – the OPTIMESS RD always has the adjacent rail in sight.

OPTIMESS CS

Compact and lightweight – whether rain or snow – the OPTIMESS CS never lets the contact wire out of its sight.
